Digital-to-Analog Converter

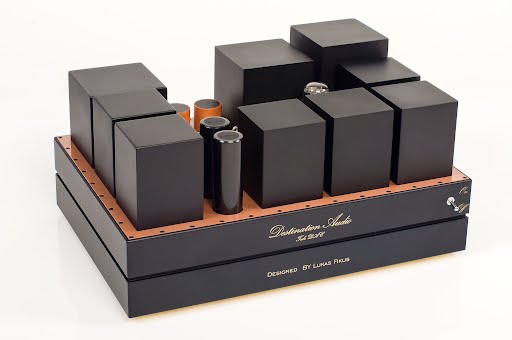

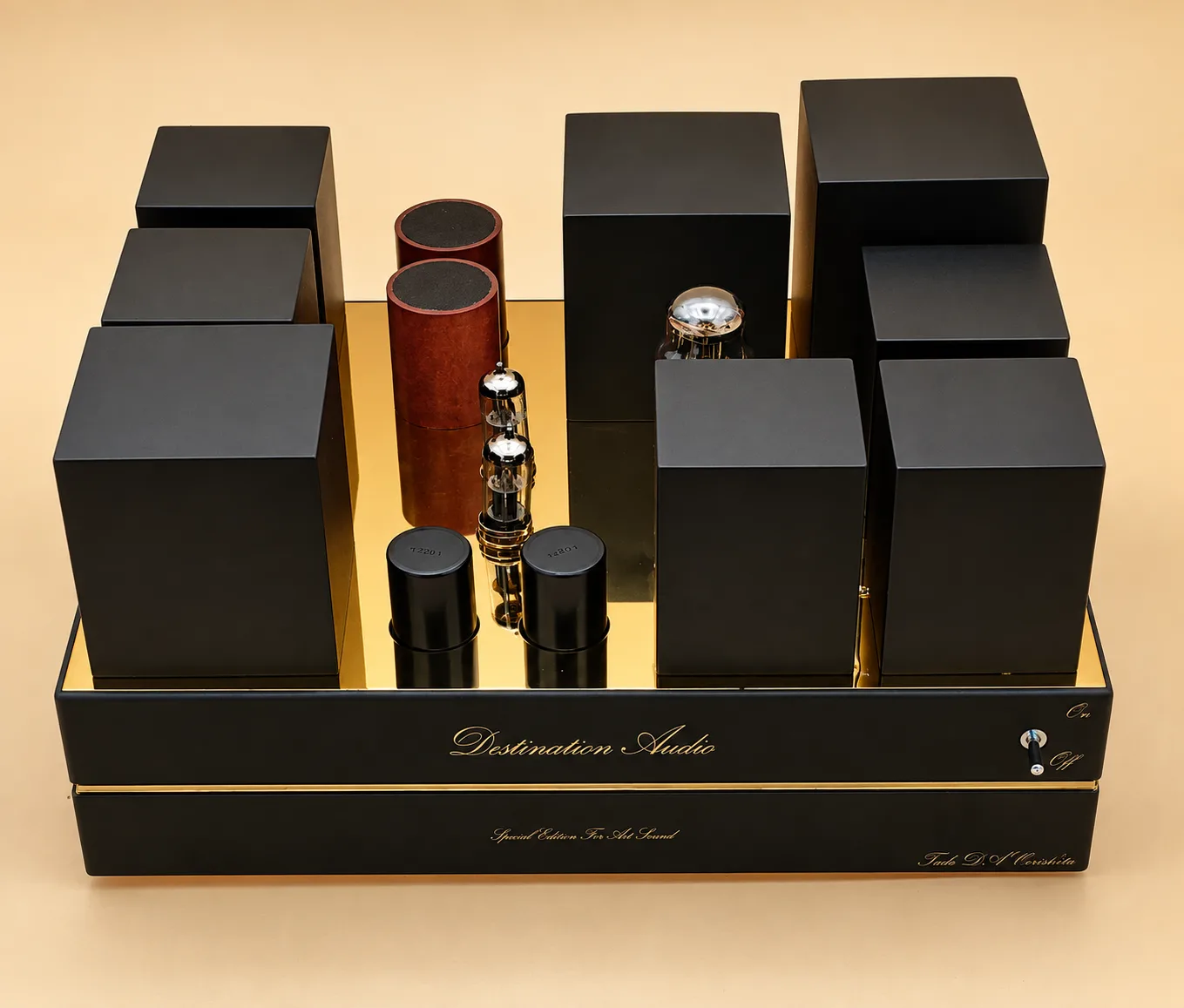

Discover the pinnacle of digital audio conversion with the Destination Audio DAC. Featuring a transformer-laden chassis and dual-board design, this DAC offers unmatched PCM and DSD native playback, setting a new standard for audio fidelity and purity.

Description

Digital Precision, Analog Soul

In a world where digital audio often lacks emotion, Destination Audio presents a DAC that brings back the warmth, depth, and musicality that true audiophiles crave.

Vacuum Tube Output Stage

  • Directly heated ECC40 triodes (NOS).

Isolated, Over‑Spec’d Power

  • Dedicated transformer for ECC40 tube heaters.
  • Dedicated transformer for AZ31 rectifier tube heater.
  • Dedicated transformer for high‑voltage power supply.
  • Dedicated transformer for fully isolated digital section.

No‑Compromise Parts

  • Duelund capacitors.
  • Furutech connectors.
  • Other carefully curated high‑end components.

Artisan Craftsmanship

  • Point‑to‑point hand wiring for a pure signal path.
  • Handcrafted with passion; built without compromise.

NOS Tubes, Analog Warmth

  • Vintage tubes deliver character & musicality that’s hard to match in current production.

Specifications

Weight 65 lbs
Dimensions (W Ă— D Ă— H) 17.5″ Ă— 12.5″ Ă— 9.0″
Digital Inputs USB (1), S/PDIF RCA (1), AES/EBU (1), I2S (1)
Output Impedance 380 Ω
Analog Outputs RCA (single‑ended)
Output Level 7 V p‑p
Mains Voltage 115–120 V AC
Frequency Response 10 Hz – 150 kHz
DSD Support Up to DSD512
PCM Support Up to 768 kHz
Tube Complement
1Ă— AZ31 rectifier
2Ă— ECC40
All specifications are subject to change without notice. Contact Destination Audio for configuration options.

Output impedance and level are nominal figures; actual measurements may vary slightly unit to unit.

Designed & built by Destination Audio – where every detail serves the music.
